operation instruction
12KW
15KW
18KW
20KW
25KW

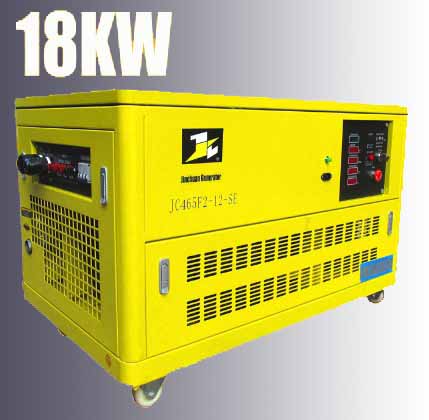

18KW

Type 465F1-18-SE
Project
Structure Type
Box Type
Way of fuel Fuel Gas
Phase 3 Phase Single-Phase 3 Phase Single-Phase
Generator Type
Synchronous motor
/RE Motor
Voltage regulator Automatic pressure regulating/  brushless
Rated outputKw 18 18 15 15
Max outputKw 19.8 19.8 16.5 16.5
Rated Current 26 78 23 63
Rated Speed 30003600
Rated VoltageV 400 230 400 230
Power Factorcosφ 0.8/0.9 1 0.8/0.9 1
FrequencyHz 50/60
Insulation Class F Class
Engine Model 465F1 465F2
Speed Mode Electronic Governor
Fuel Tank CapacityL 25
Fuel ConsumptionL 340g/kw. h
Starting Method Electric start
Ignition Method Inductance ignition
Fuel Type 90#
Engine type
Four-stroke, Four-cylinder, Water cooled, Single overhead camshaft inline
Oil Type SF 15W/engine oil level summer 15W/30; Winter 10W/30
Oil Volume 3.5L
Actual Size 1120*720*680
Packing Size 1160*780*800
Noise 7mdB 75
Net WeightKg 295 295
18kw
